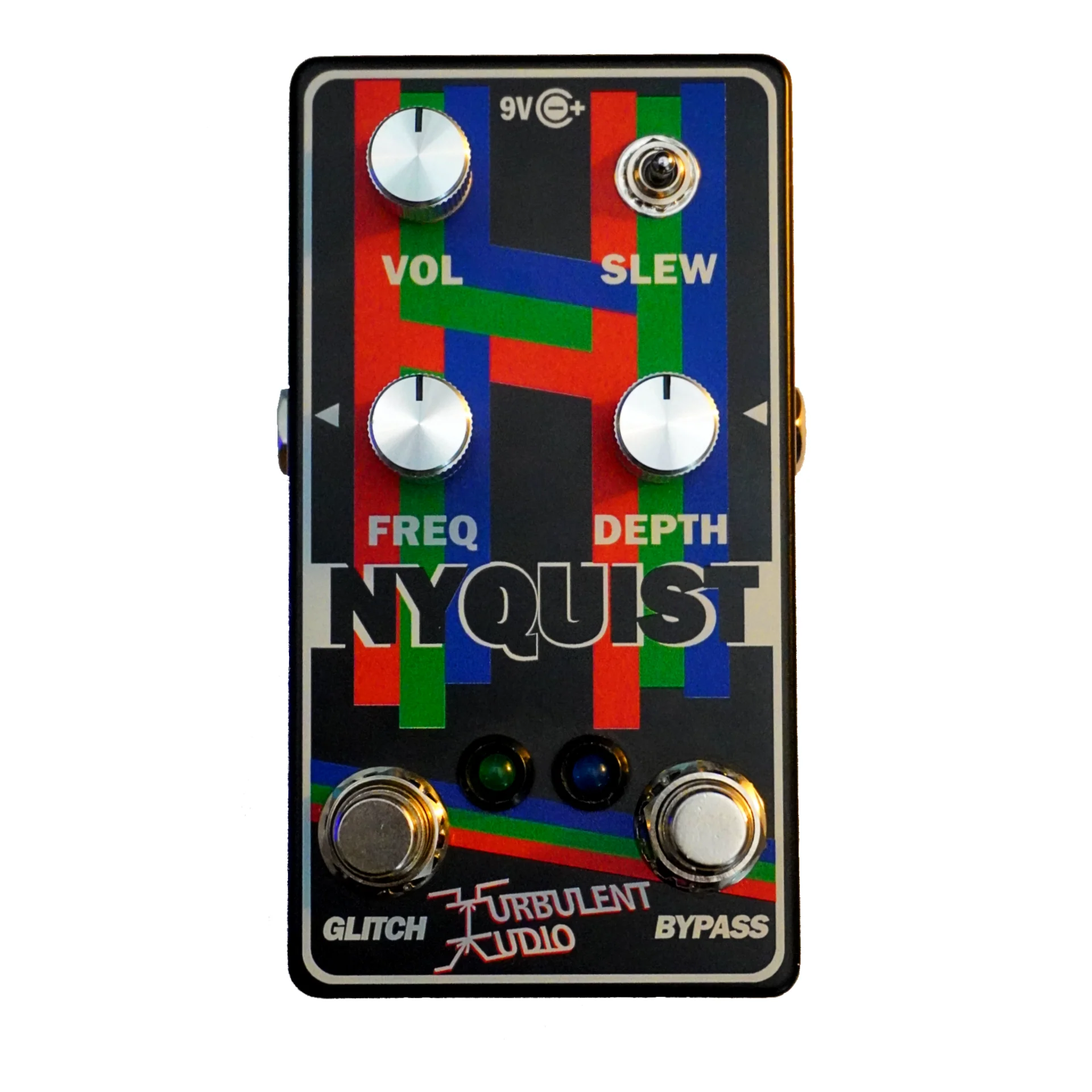

NYQUIST is a bitcrusher made with all analog components designed to deliver everything from subtle sample-rate reduction to unpredictable aliasing. It's core is a sample and hold circuit - an architecture more commonly found in synthesizers.

Frequency and depth are the primary controls:
Frequency adjusts the sample rate, ranging from lo-fi degradation to heavy digital distortion.
Depth adjusts the clock's pulse width, effectively blending in clean signal for optional clarity. The Slew switch introduces decay to the held signal to alter the body and character of the effect. The Glitch footswitch drastically lowers the sample rate to create intense aliasing artifacts and ultra-glitchy sounds.

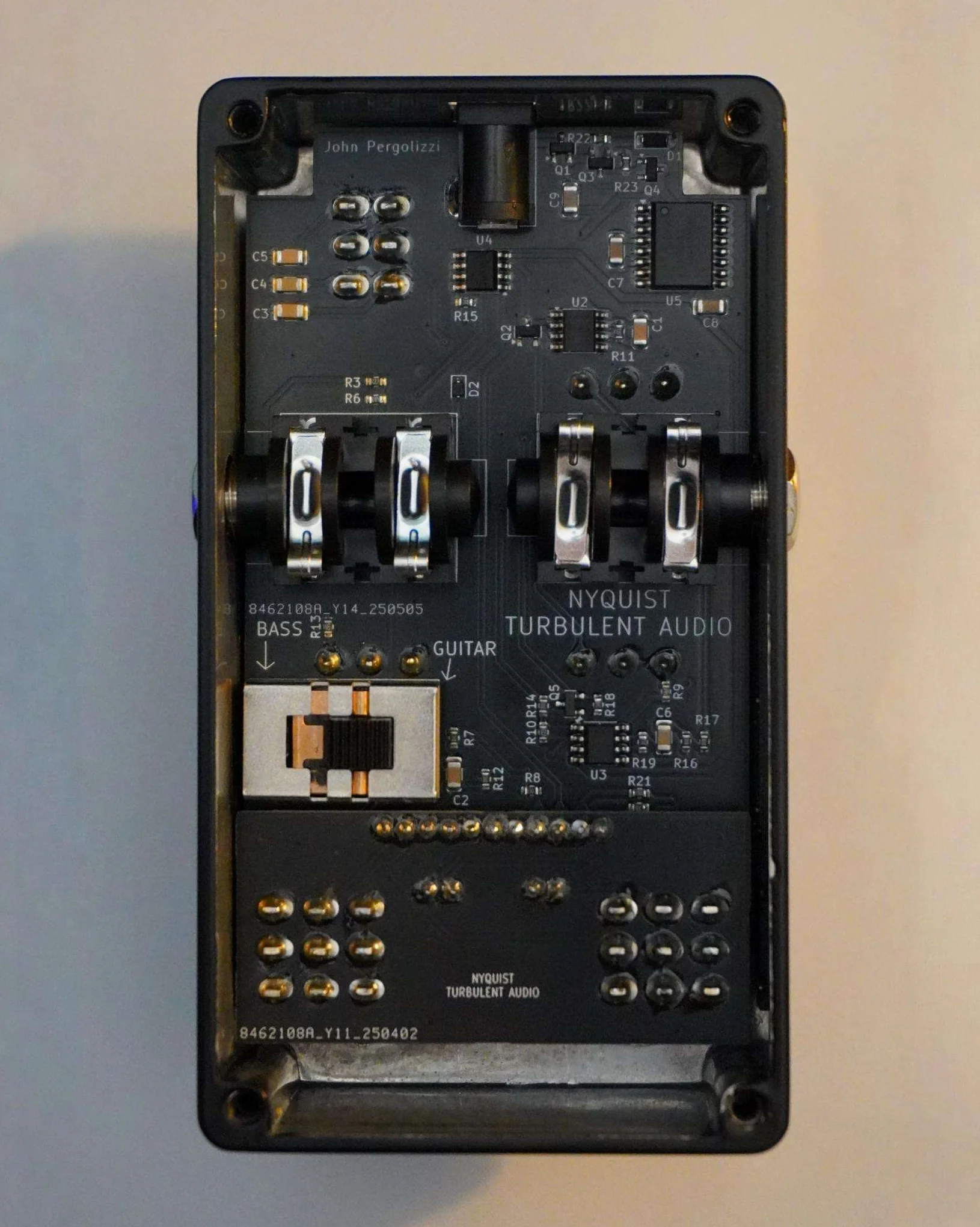

Opening up the back reveals an internal bass mode switch that adjusts the clock speed to allow NYQUIST to better suit a bass's frequency range. Additional features include overvoltage/reverse polarity protection, true bypass, and aluminum knobs. Note that, like other clock-based and sample and hold effects, NYQUIST's clock can be inherently noisy. Maxing out the

Turbulent Audio

NYQUIST Bitcrusher
